Our FRP handrail systems provide unmatched safety and durability for industrial, marine, and architectural applications. Manufactured from premium pultruded FRP profiles, these handrails offer superior corrosion resistance, electrical insulation, and structural integrity compared to traditional metal railings. With a load-bearing capacity of 500+ lbs per linear foot, they ensure reliable fall protection in demanding environments.
Top Rails
Technical Specifications & Standard Dimensions

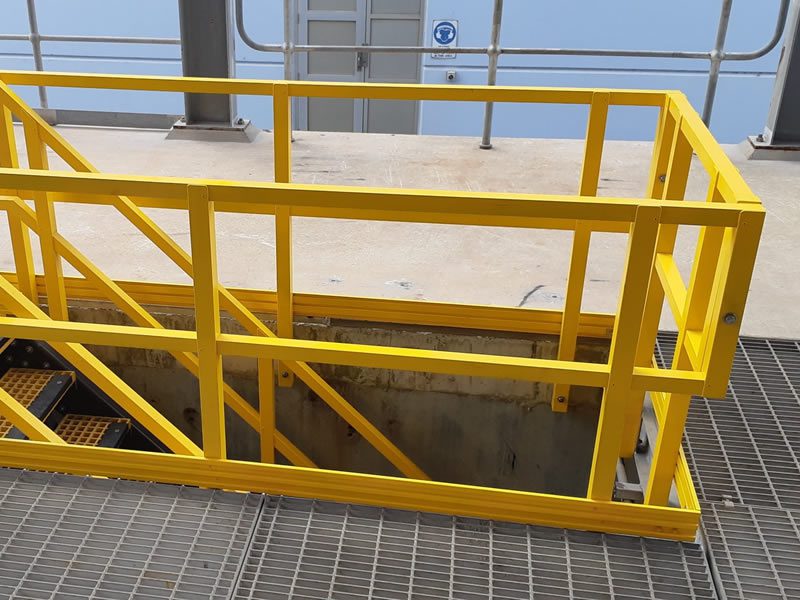

- Top Rails:
- 50mm × 50mm square FRP profiles (standard)

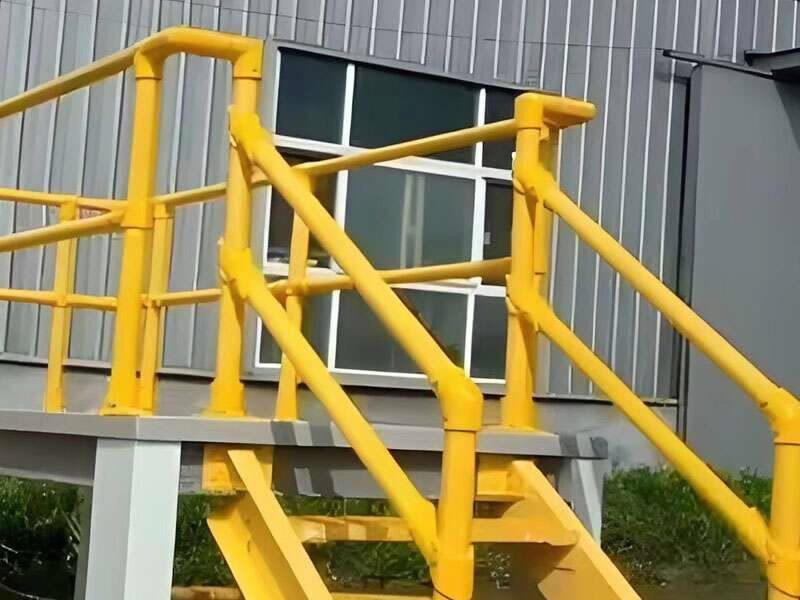

- 60mm diameter round tubes (alternative option)
- Wall thickness: 4.5mm (standard) | 6mm (heavy-duty)
- Vertical Posts:
- 75mm × 75mm square posts (standard spacing: 1.2m center-to-center)
- 89mm diameter round posts (for high-traffic areas)
- Mid Rails/Kick Plates:
- 40mm × 40mm square or 36mm round FRP profiles
- 100mm high kick plates (optional safety feature)
Material Composition
- Fiberglass reinforcement with isophthalic polyester resin
- UV-resistant gel coat with 5% TiO2 content
- Molded thermoplastic connectors (stainless steel hardware available)
Advantages
Extreme Environment Resistance
- Chemical Immunity: Withstands strong acids, alkalis, and solvents (pH 1-14)
- Marine-Grade: Saltwater/corrosion-proof for docks, offshore platforms, and coastal installations
- Temperature Range: -40°C to +80°C operational stability
- UV Protection: Integral UV inhibitors prevent fading (50+ year lifespan)
Safety & Compliance Features
- Slip-Resistant Surface: Diamond-pattern or grit-coated options (OSHA-compliant)
- Fire Rating: Self-extinguishing (ASTM E84 Class A)
- Dielectric Strength: >12kV/mm for electrical safety
Installation & Customization
Modular Design Benefits
- Prefabricated Sections: 2.4m/3m/6m standard lengths (custom cuts available)
- Quick-Connect System: Stainless steel brackets allow tool-free assembly
- Foundation Options:Surface mounting with expansion anchorsDirect concrete embedding (300mm minimum depth)
Aesthetic & Functional Customization
- Color Options: Standard safety yellow, plus 12 RAL colors
- Profile Styles: Square, round, or architectural oval FRP profiles
- Special Finishes:Anti-climb textureReflective tape integrationCustom logos/identification markers

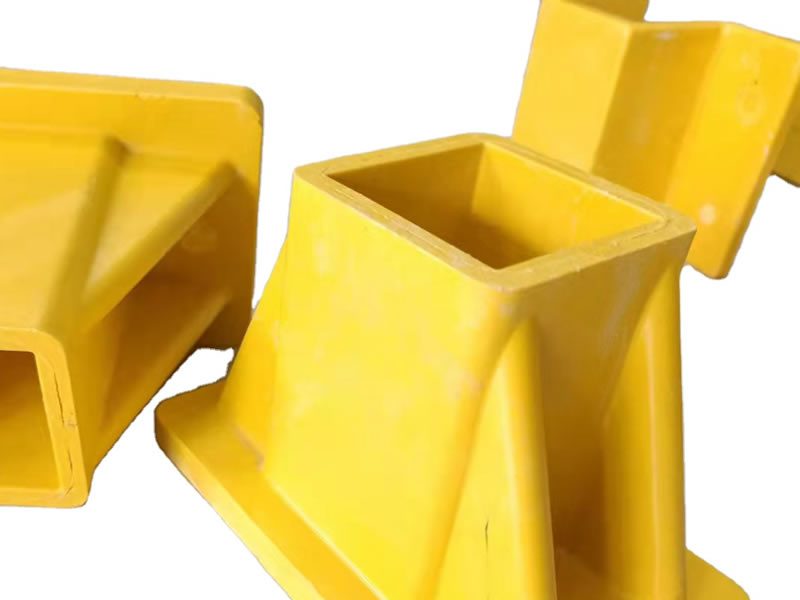

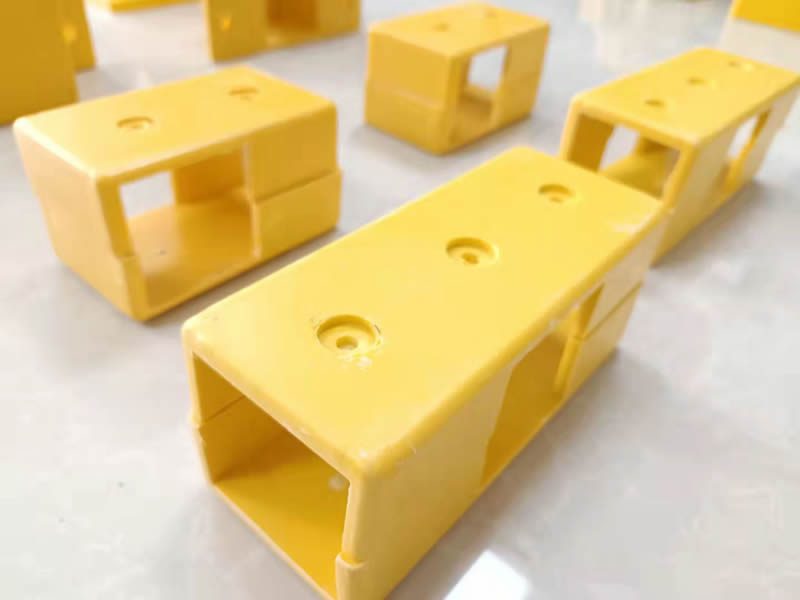

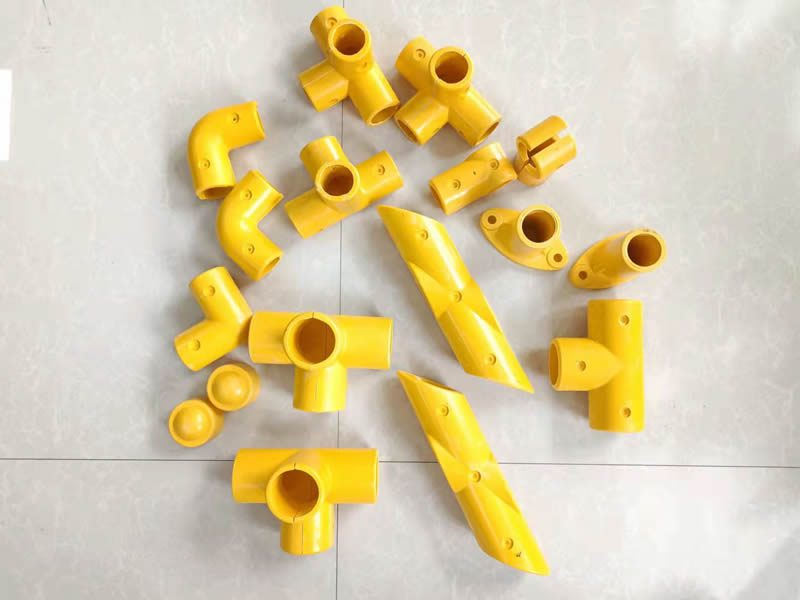

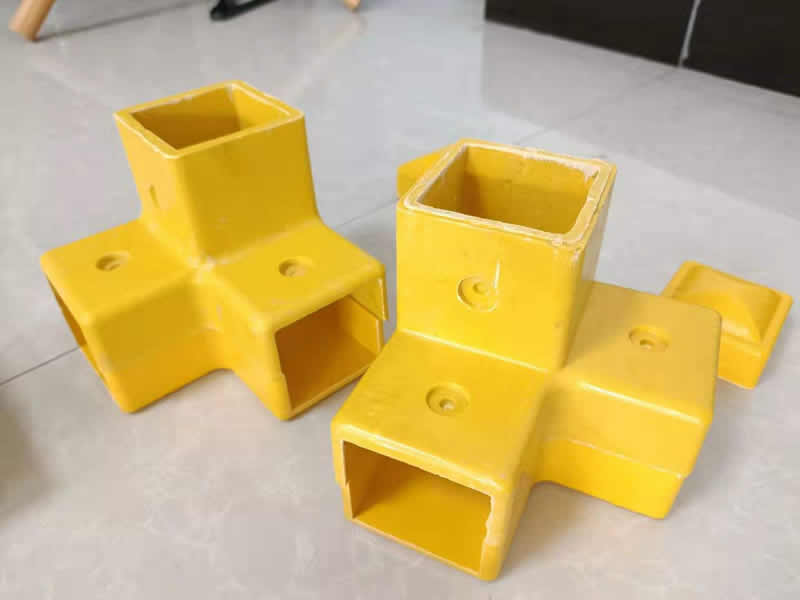

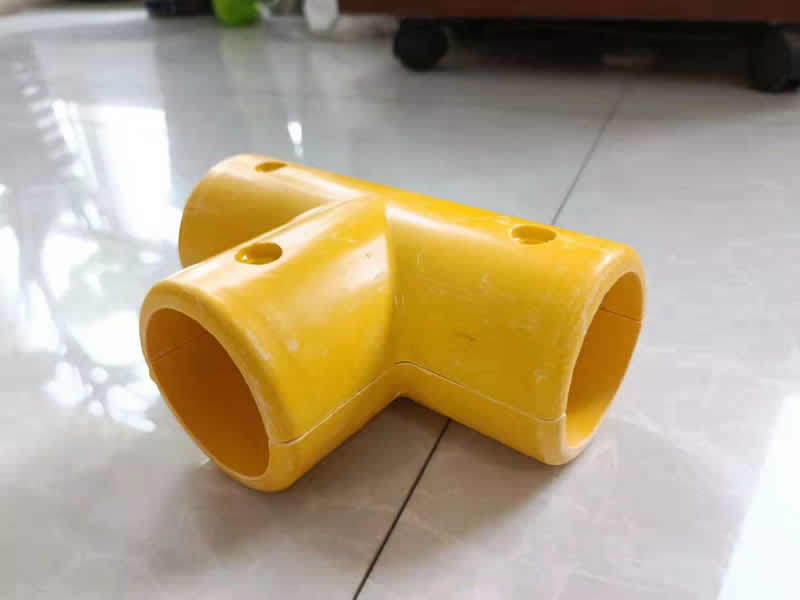

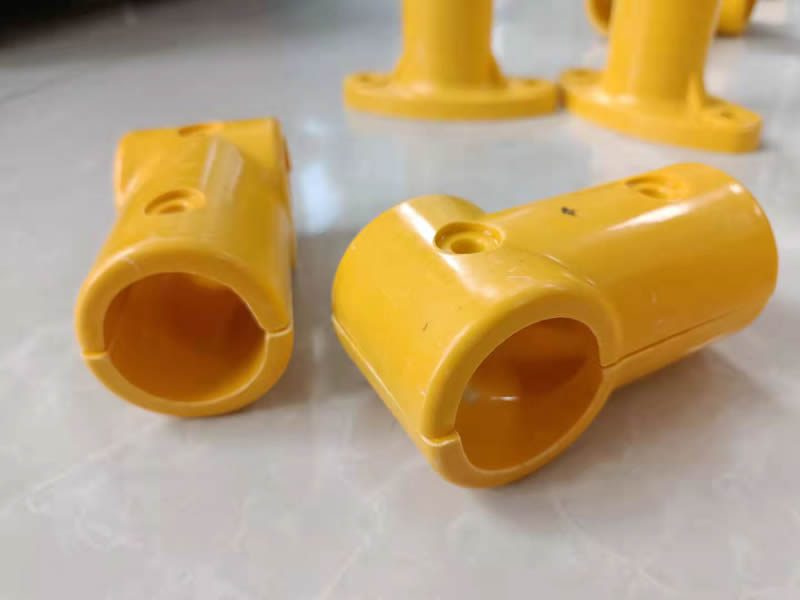

FRP Handrail Fittings
Applications

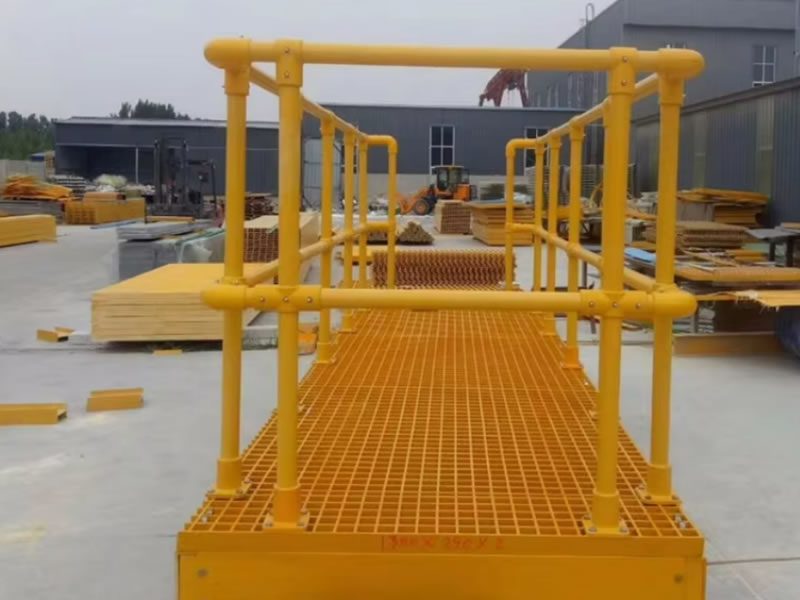

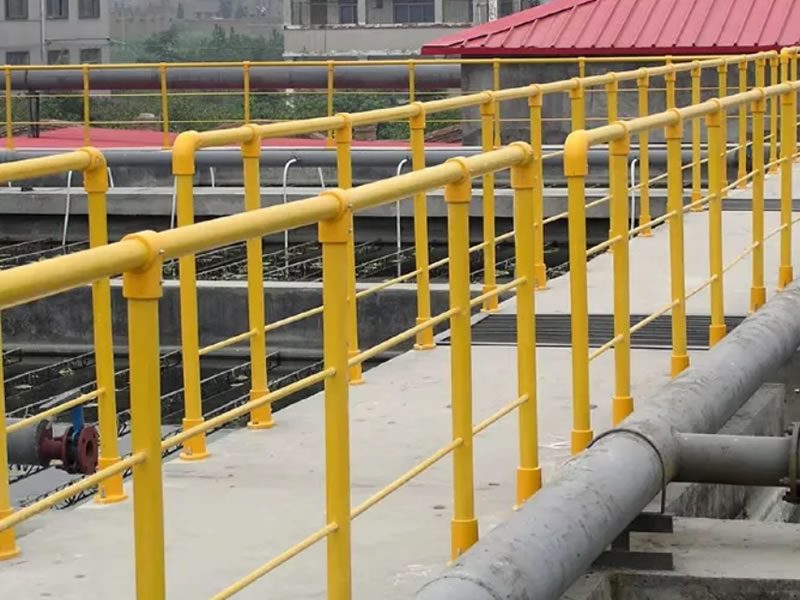

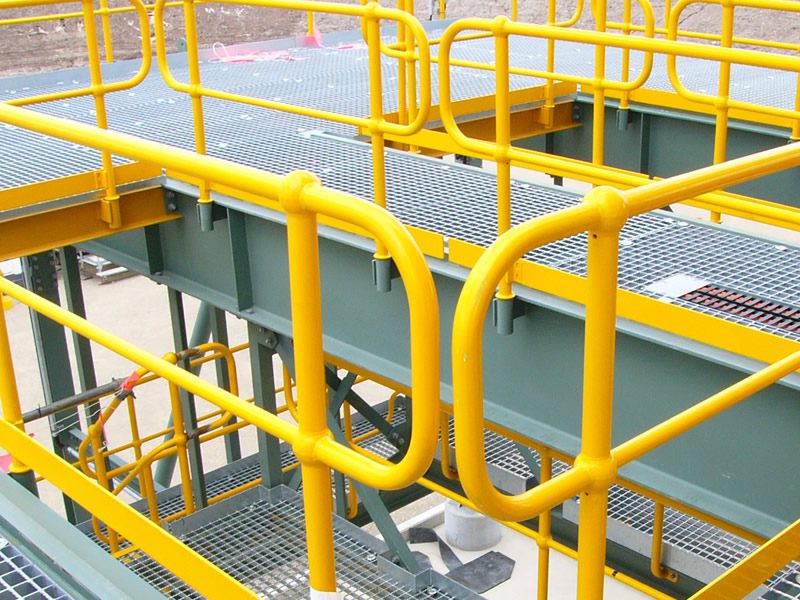

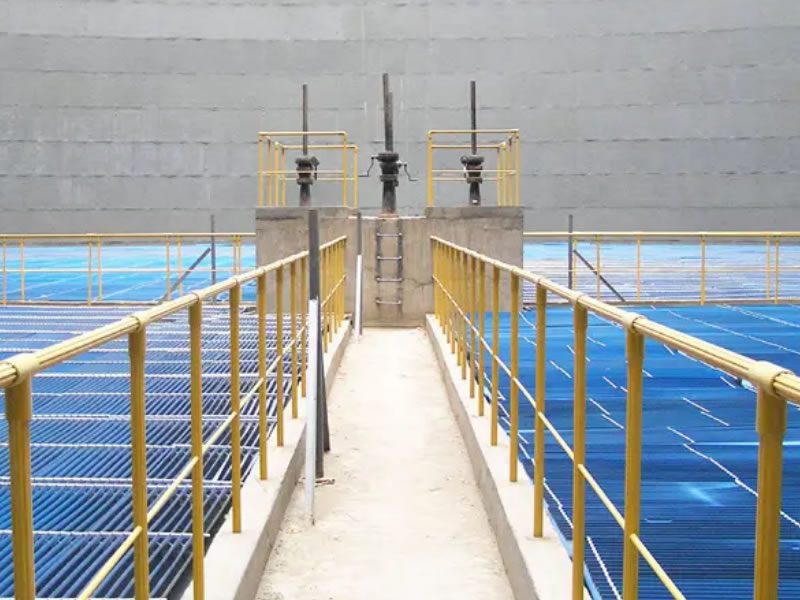

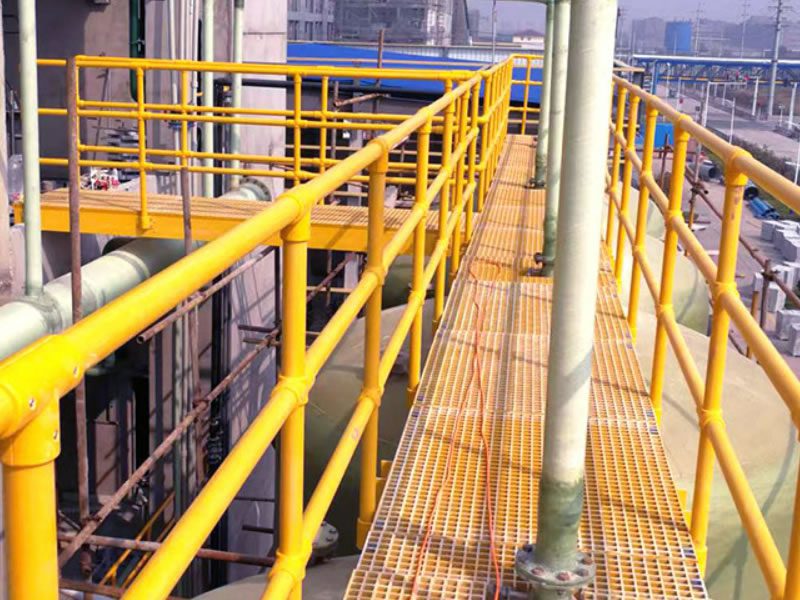

- Industrial: Chemical plants, water treatment facilities, power stations
- Marine: Ship decks, piers, offshore oil rigs

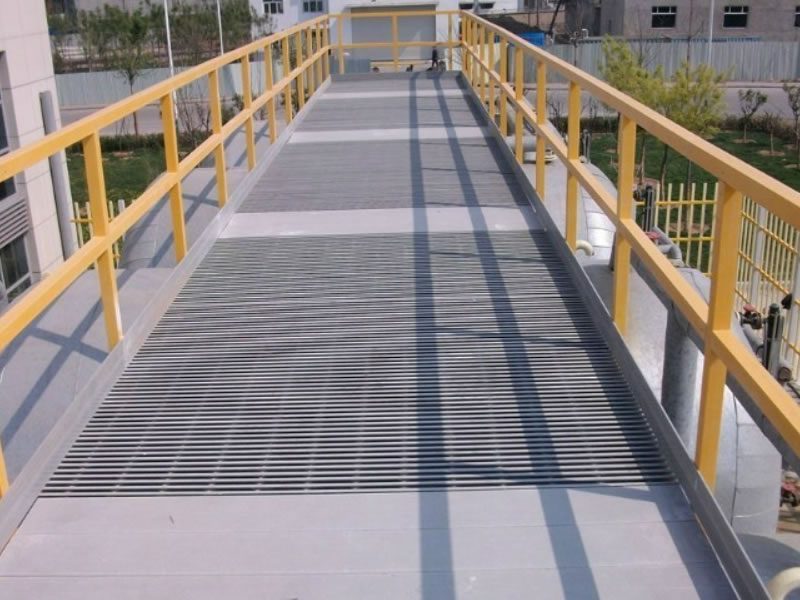

- Infrastructure: Bridges, pedestrian walkways, subway platforms
- Commercial: Stadiums, shopping malls, rooftop terraces
Why Choose Our FRP Handrails?
✔ 80% Lighter Than Steel – Dramatically reduces installation labor
✔ Zero Maintenance – Never requires painting or rust treatment
✔ Custom Engineering – CAD-designed solutions for complex layouts
✔ Sustainable Choice – 100% recyclable with low carbon footprint
Upgrade to high-performance FRP handrail systems that combine safety, longevity, and aesthetic appeal. Contact our engineering team for project-specific configurations!
Available in stock sizes or fully customized to your project specifications.
